Curtainwall Backpans

Backpans are instrumental in most curtainwall designs where openings require insulation to meet the design criteria. Americlad’s backpan systems are steel and can be easily formed to meet the opening size and specifications.

Close Up Galvanized Curtainwall Backpan

Turnkey Backpan Systems

Let Americlad build your project a turnkey backpan system! We’ll factory-install the insulation, utilizing stick pins to ease installation of the units. Americlad’s capabilities as your one-stop metal fabrication shop make us the clear choice for all your backpan needs and more.

Icon Sustainable


Americlad’s backpans offer valuable sustainability features, including LEED credits and the ability to recycle panels at the end of their life. A selection of our panels can be manufactured with recycled materials.

Icons Installation


Our backpans can be easily installed within the cavity opening of most curtainwall systems. We offer various depths to properly house installation, which can be factory-installed or filled in the field, depending on the application.

Icons Flexibility


Steel backpans offer significant design flexibility. The gauge and depth of the panel can vary depending on the design intent; gauges typically vary from 22 gauge up to 16 gauge.

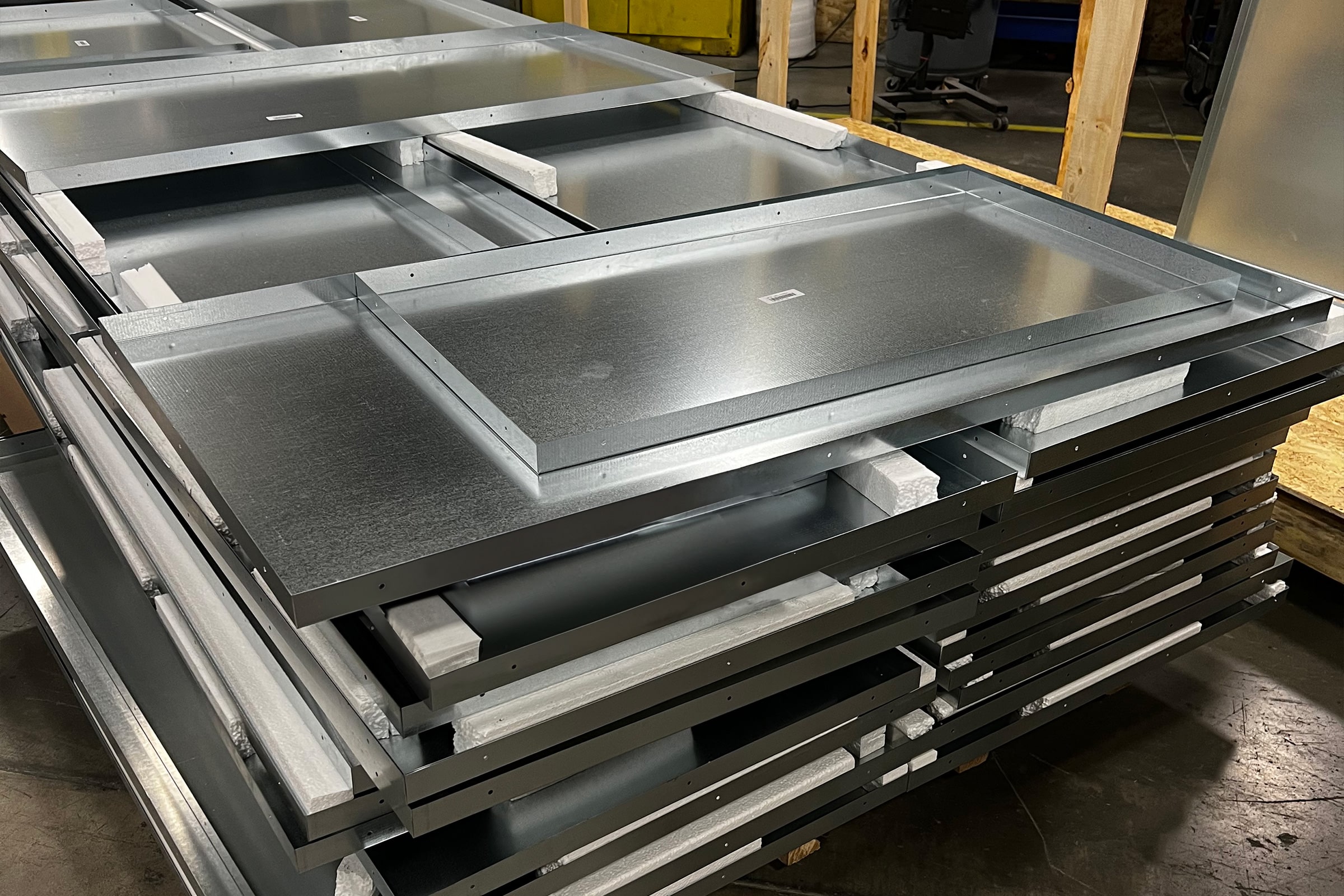

Galvanized Curtainwall Backpan Feature

Product Features

Key Features

  • Fire proofing options available
  • Various insulation types and  R-values available
  • Variable system depths
  • Factory-assembled units


  • Steel (22 GA – 16 GA)
  • Aluminum (.040 to .125)

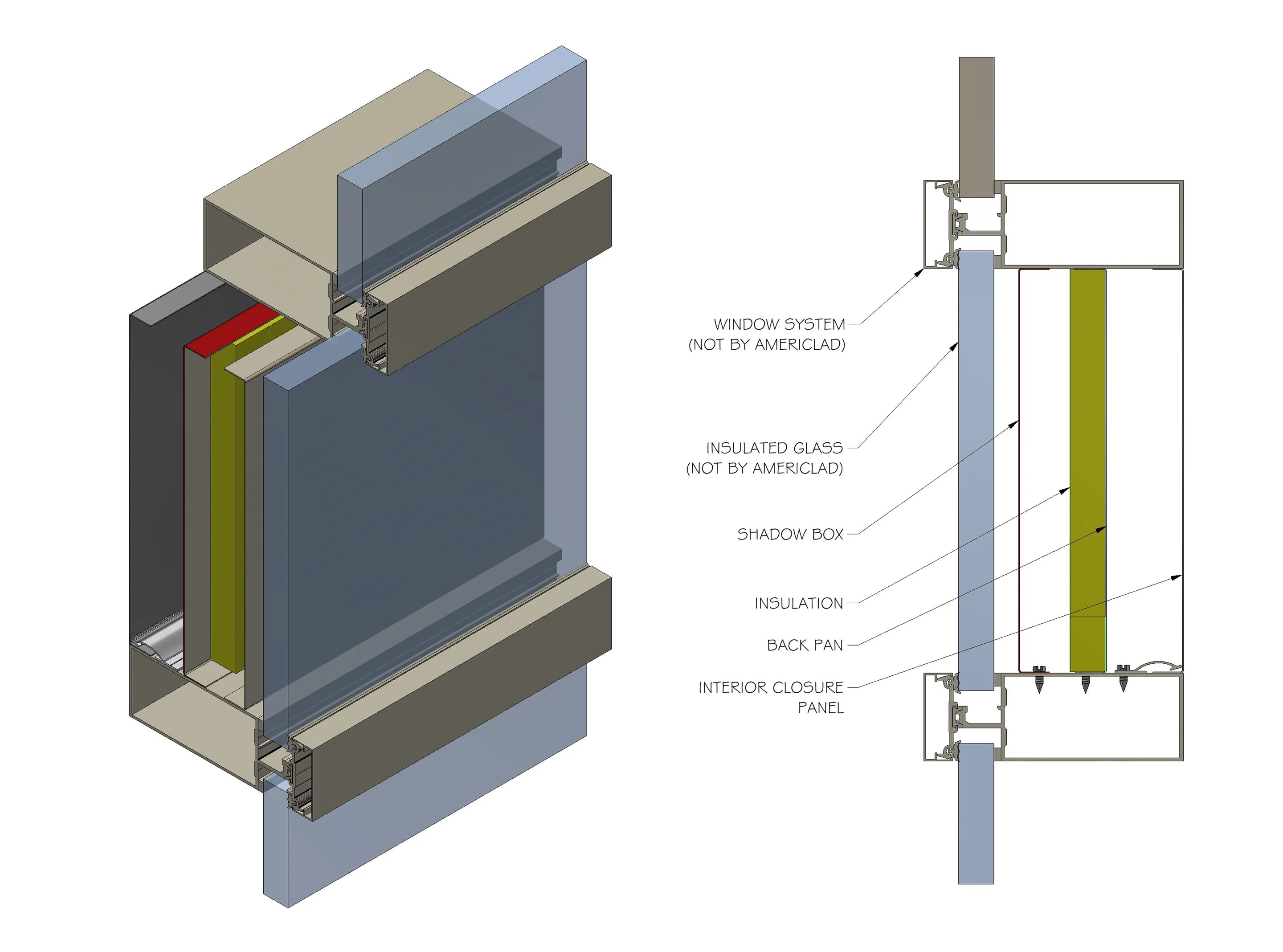

Back Pan Feature

Click to enlarge

Curtainwall Backpans

Product Description

Americlad® Backpans are utilized in curtain wall systems where additional insulation values are required.

Americlad® Backpan systems features include:

  • 9Simple four sided panel design
  • 9Flexible installation, even on unique architecture
  • 9Available in a wide variety of thicknesses in galvanized steel and aluminum
  • 9Finishes - Galvanized Steel, post paint aluminum, post anodized aluminum, pre anodized and pre-painted aluminum

Featured Projects

See our work in action

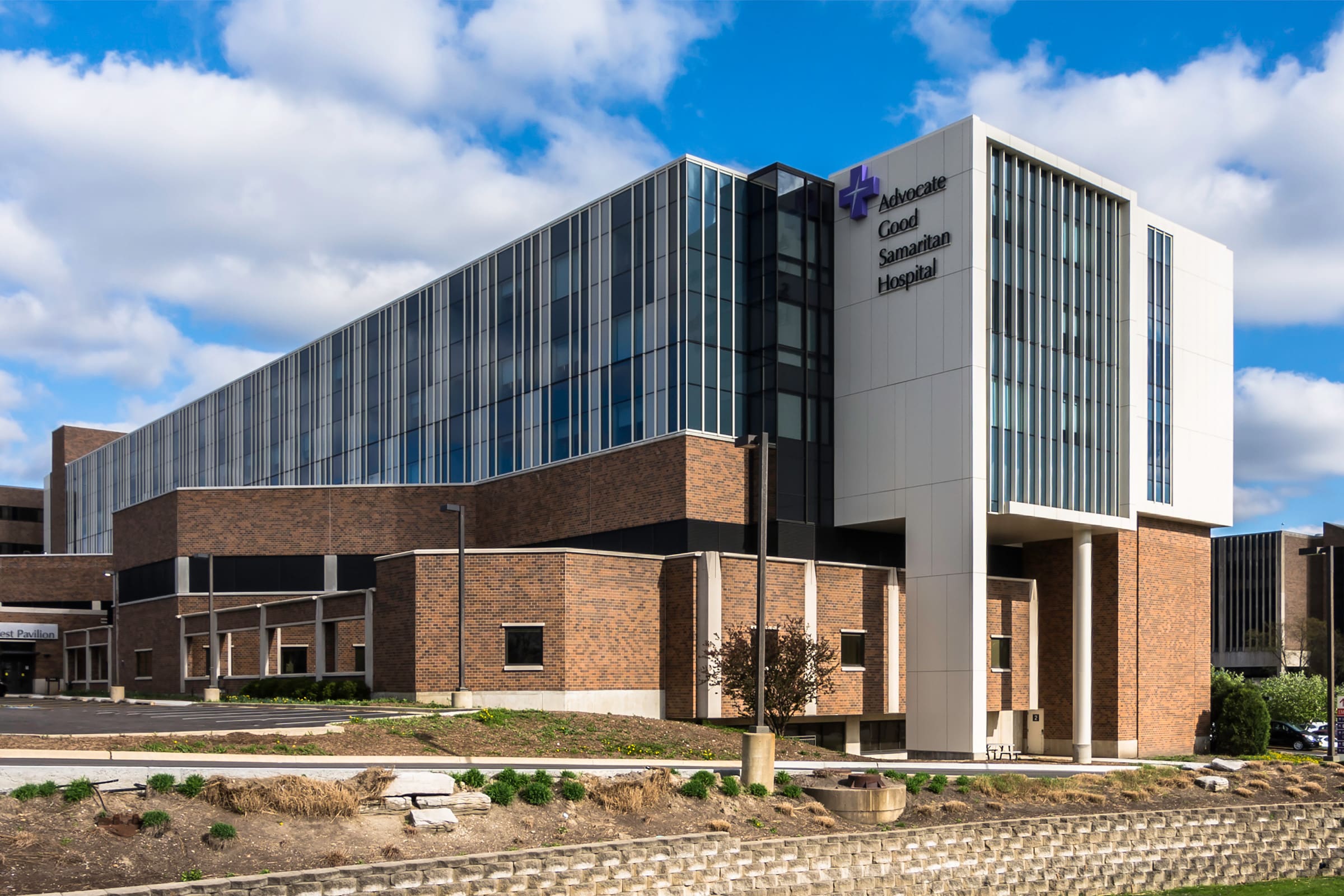

Project AdvocateDG Feature
