Flatlock Panel Systems

Our flatlock metal panel systems are a simple yet elegant cladding solution that provides a flat longitudinal seam. Available in two distinct systems and a variety of metals and finishes, Americlad’s extensive product line ensures you’ll find the right flatlock panel system to meet your project’s specific needs.

Close Up Of Grey Flat Lock Siding And Large Window

FAST, EASY INSTALLATION

Utilizing a simple interlocking fold on all four sides, flatlock panel systems offer flexible installation on even the most geometrically challenging building.

Icons Aesthetics

AESTHETICS

No matter how architecturally complex your building may be, our flatlock panel systems offer a sophisticated solution.

Icons Installation

Installation

Whether you choose traditional clip-style installation or our unique integrated-clip panels, you’ll enjoy a streamlined and efficient installation process.

Icons Flexibility

FLEXIBILITY

These lightweight panels can be installed either horizontally or vertically for total flexibility and a seamless installation experience.

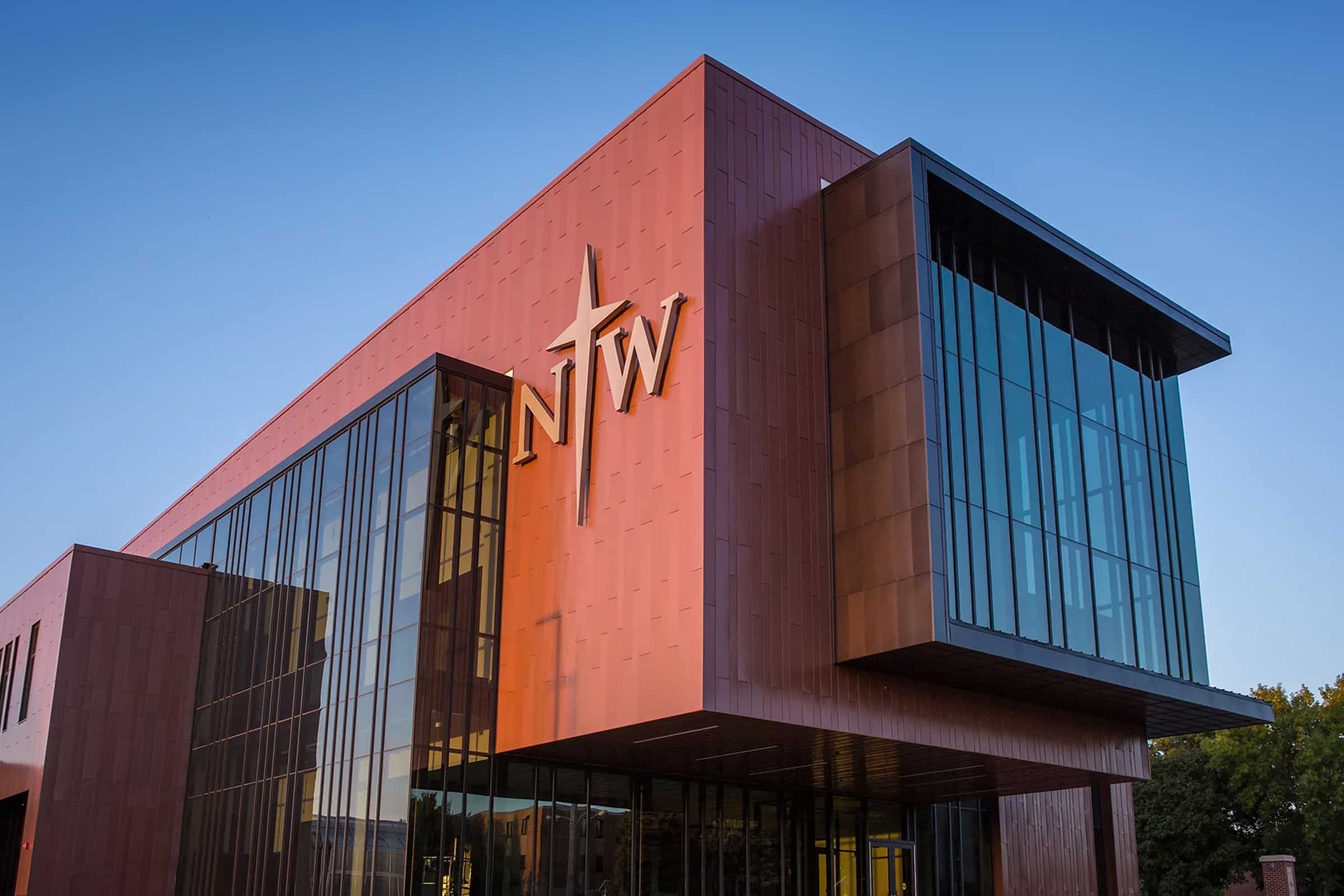

Flatlock Panel System Feature
FLATLOCK PANEL SYSTEM

Product Features

Substrates

Available in a wide variety of substrate and thicknesses:

  • Aluminum (.040, .050, and .063)
  • Prefinished Steel (26 ga, 24 ga, 22 ga)
  • Stainless Steel (24 ga, 22 ga, 20 ga)
  • Zinc ( .7mm, .8mm, 1.0mm, 1.5mm)
  • Copper (16 oz, 20 oz, and 24 oz)

Rainscreen System

  • Wide variety of colors from the manufacturer’s standard color selection as well as custom color options
  • Able to install in running bond pattern
  • Available in natural metals, including zinc, aluminum, copper & stainless steel
  • System features our Dry-Look™ appearance with no exposed fasteners or caulking

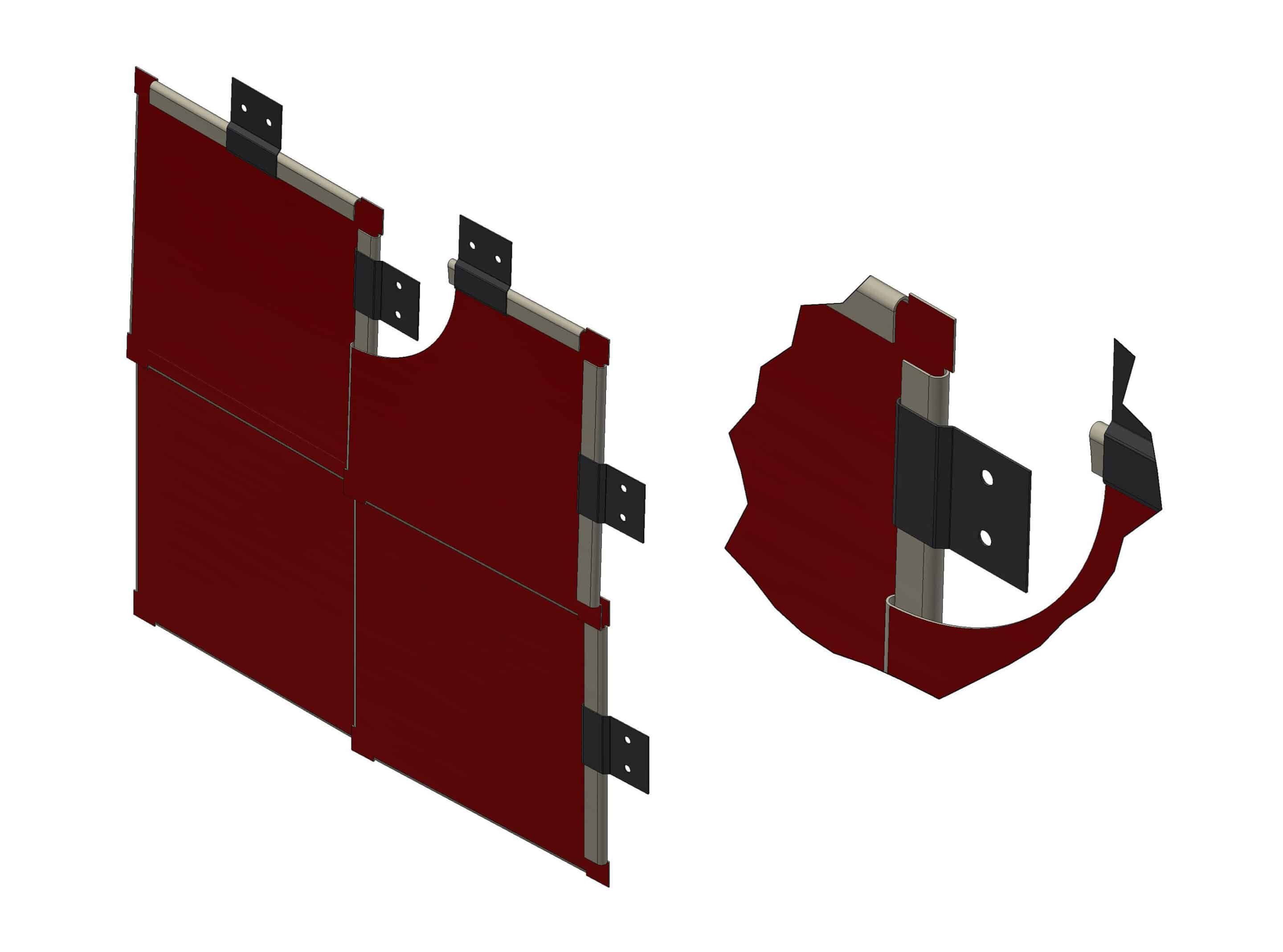

AC 5000

Click to enlarge

AC-5000

Product Description

The Americlad® AC-5000 Flat Lock Panel System is a light-gauge wall panel system that provides a longitudinal flat seam. It utilizes a traditional, clip-style installation.

Americlad® AC-5000 system features include:

  • 9Simple interlocking fold design on all four sides
  • 9Flexible installation, even on unique architecture
  • 9Panels can be installed horizontally or vertically
  • 9Available in a wide variety of substrates and finishes, including copper, zinc, stainless steel, aluminum, pre-painted steel, and pre-painted aluminum

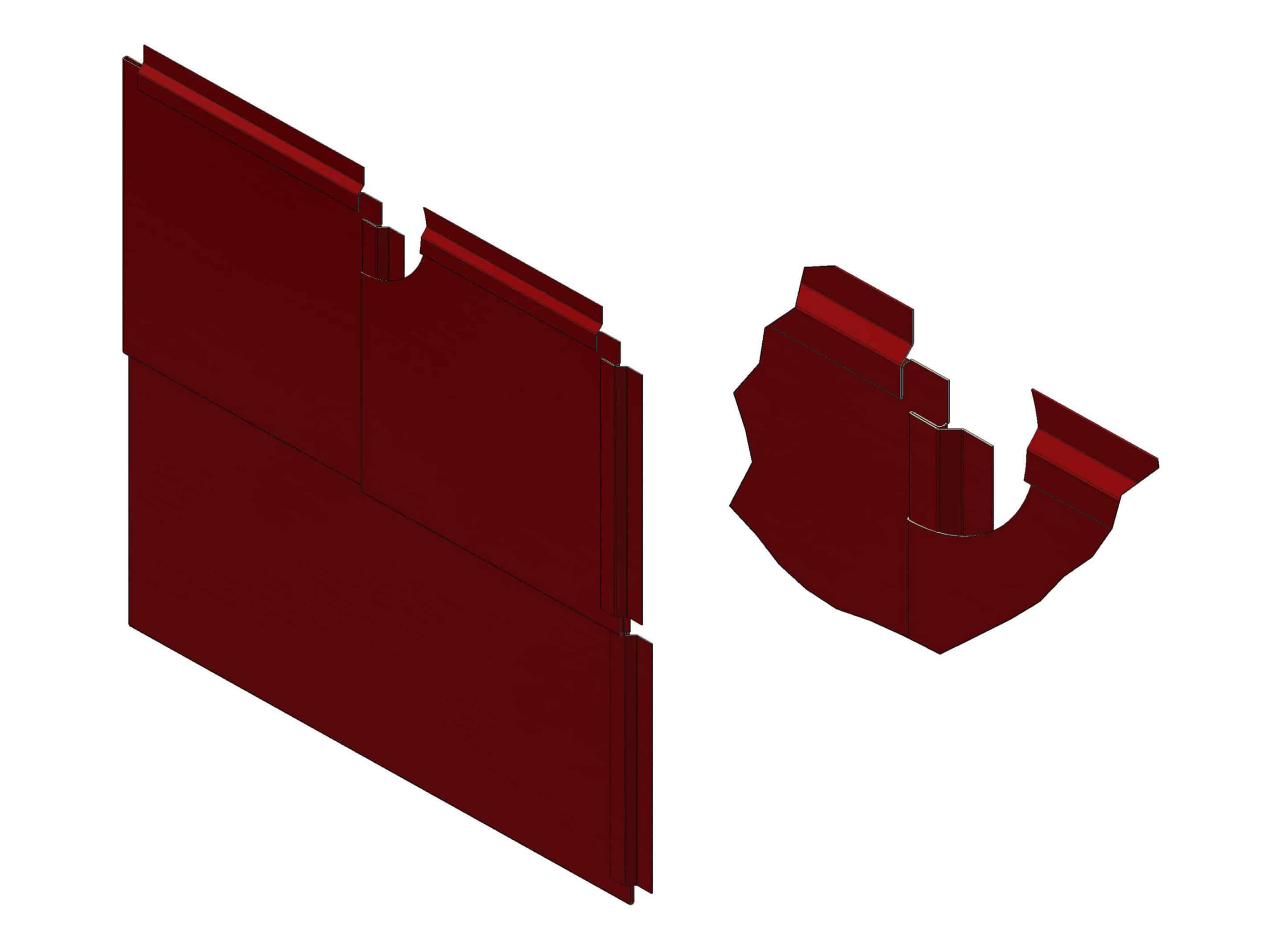

AC 5500

Click to enlarge

AC-5500

Like the AC-5000, the Americlad® AC-5500 Flat Lock Panel System is a light-gauge wall panel system that provides a longitudinal flat seam and outstanding aesthetics. The AC-5500 features a clip integrated directly in the panel design. The integrated clip streamlines the installation process, ultimately saving you time in the field.

Americlad® AC-5500 system features include:

  • 9Uses a unique, integrated horizontal attachment method that eliminates the need for a traditional clip system, resulting in faster field installation
  • 9Panels can be installed horizontally or vertically
  • 9Available in a wide variety of substrates and finishes, including copper, zinc, stainless steel, aluminum, pre-painted steel, and pre-painted aluminum
