Plate Panel Systems

We’re confident that our industry tested, easy-to-install plate panel systems are an ideal choice for your project. Our extensive product line, advanced manufacturing processes and commitment to quality ensure that Americlad can meet your needs and exceed your expectations.

Close Up Of Building With Plate Panel System

BEST-IN-MARKET FLEXIBILITY + DURABILITY

At Americlad, we take pride in offering high-quality plate wall panel systems. Our panels feature a solid, non-laminated metal substrate, making them durable — ideal for high-traffic areas where impact resistance is critical.

Our plate panel systems offer a highly versatile design experience, providing a wide variety of custom color options and overall customization opportunities.

We offer both perforated and custom metal configurations for all our plate panel systems, and our panels can even be back routed for a sharper edge and clean, contemporary look. Whatever your project requirements, you can trust in Americlad to provide the high-quality, customizable plate wall panel systems you need.

Icon Sustainable

Sustainable

Plate panel systems offer outstanding longevity and can be manufactured with high-quality recycled materials, making them a long-term, sustainable solution for your exteriors.

Icons Installation

Installation

Aluminum plate makes for easy, streamlined installation with greatly reduced risk of damage to the product.

Icon Durability

Durable

The superior dent resistance of plate panels lends itself perfectly to use in high-traffic applications where durability is key.

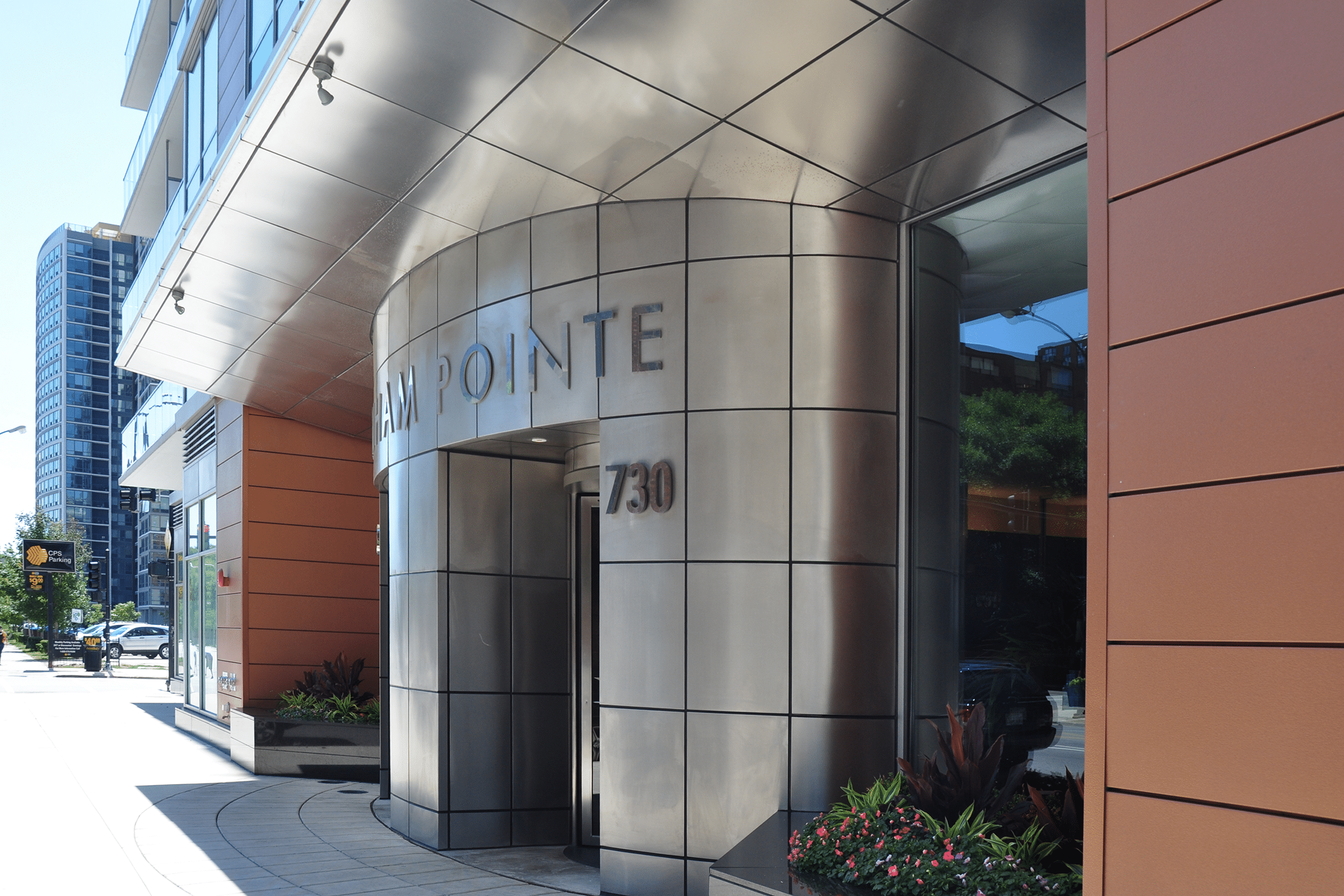

Plate Panel System Feature 2
PLATE PANEL SYSTEM

Product Features

Substrates

Available in a wide variety of substrate and thicknesses:

  • Large selection of colors from the manufacturer’s standard color selection
  • Available in natural metals, including zinc, aluminum, copper & stainless steel

Rainscreen Systems

  • Available in Back Ventilated or Pressure Equalized systems
  • System features our Dry-Lookâ„¢ appearance with no exposed fasteners or caulking

Wet Joint Systems

  • Superior flatness
  • Formed and return flange and a slotted clip to accommodate expansion and contraction
  • Joints utilize a traditional backer rod and caulk system, which are field applied for a complete and sealed installation
  • The AC-1300 system features our exclusive, patented sliding clip, which dramatically reduces installation and field labor, saving the installer time and money
AC 3000

Click to enlarge

AC-3000

Product Description

The Americlad® AC-3000 Aluminum Plate Panel System is a barrier wall system manufactured from aluminum plate material.

Americlad® AC-3000 system features include:

  • 9Formed return flanges with slotted clips to accommodate expansion and contraction
  • 9Wide variety of standard and custom colors available
  • 9Superior flatness
  • 9Extreme durability, great for high traffic areas
  • 9Available in natural metals, including zinc, brushed aluminum, copper & stainless steel
  • 9Joints utilize a traditional backer rod and caulk system, which are field applied for a complete and sealed installation
  • 9ASTM 283, ASTM 330 and ASTM 331
AC 3100BR

Click to enlarge

AC-3100 BR

Product Description

The Americlad® AC-3100 Back Routed Plate Panel System is a barrier wall system manufactured from aluminum plate material. The system features a route-and-return fabrication method.

Americlad® AC-3100 BR system features include:

  • 9Back routed corners for crisp, sharp corners
  • 9Formed return flanges with slotted clips to accommodate expansion and contraction
  • 9Wide variety of standard and custom colors available
  • 9Superior flatness
  • 9Extreme durability, great for high traffic areas
  • 9Available in natural metals, including zinc, brushed aluminum, copper & stainless steel
  • 9Joints utilize a traditional backer rod and caulk system, which are field applied for a complete and sealed installation
  • 9ASTM 283, ASTM 330 and ASTM 331
AC 3200

Click to enlarge

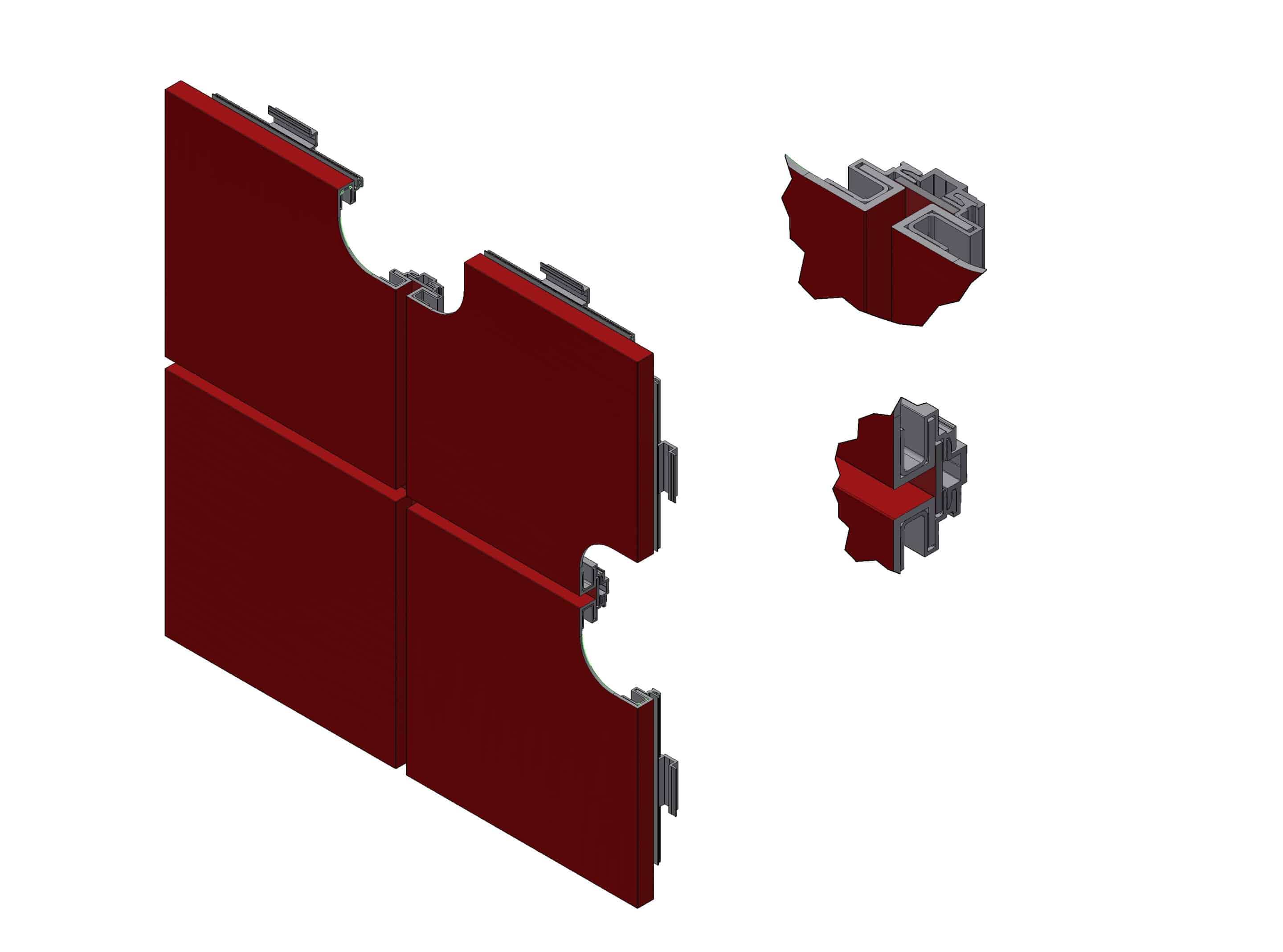

AC-3200

Product Description

The Americlad® AC-3200 Dry Joint Panel System is a rainscreen panel system manufactured from aluminum plate material. The system incorporates perimeter extrusions and clips.

Americlad® AC-3200 system features include:

  • 9Dry-Lookâ„¢ appearance with no exposed fasteners or caulking
  • 9Wide variety of standard and custom colors available
  • 9Available in Back Ventilated System
  • 9Available in zinc, brushed aluminum, copper and stainless steel
  • 9ASTM 283, ASTM 330, ASTM 331, AAMA 501.1 and AAMA 509
AC 3200

Click to enlarge

AC-3200 PE

Product Description

The Americlad® AC-3200 Dry Joint Panel System is a rainscreen panel system manufactured from aluminum plate material. The system incorporates perimeter extrusions and clips.

Americlad® AC-3200 PE system features include:

  • 9Dry-Lookâ„¢ appearance with no exposed fasteners or caulking
  • 9Wide variety of standard and custom colors available
  • 9Pressure Equalized System
  • 9Available in zinc, brushed aluminum, copper and stainless steel
  • 9ASTM 283, ASTM 330, ASTM 331, AAMA 501.1 and AAMA 508
AC 3200BV

Click to enlarge

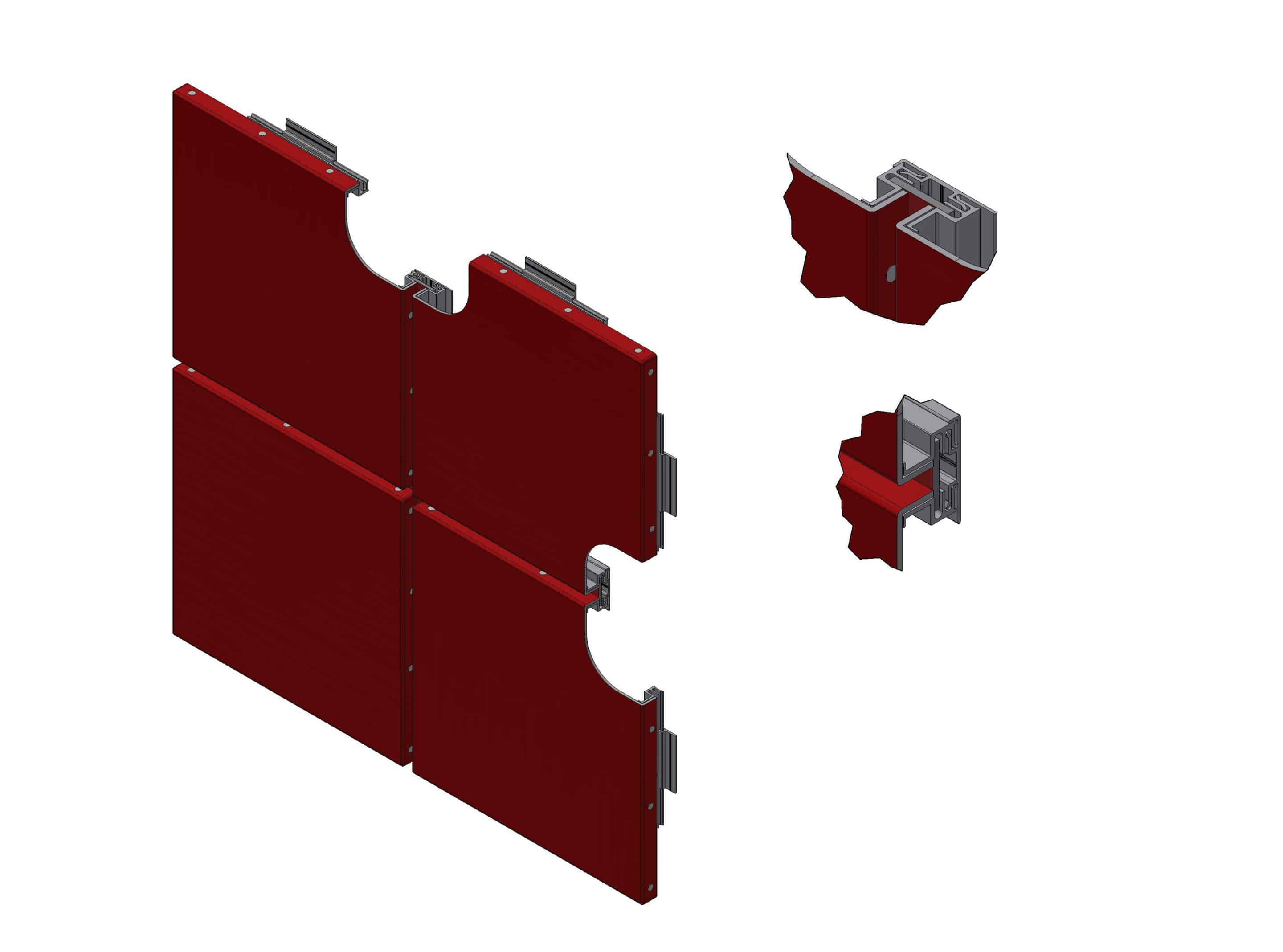

AC-3200 BV

Product Description

The Americlad® AC-3200 BV Aluminum Plate Dry Joint Panel System is a rainscreen panel system incorporating perimeter extrusions and clips.

Americlad® AC-3200 BV system features include:

  • 9Manufactured out of solid aluminum plate
  • 9Panels have formed return flanges
  • 9Endless color selection
  • 9Back Ventilated
  • 9System features our Dry-Lookâ„¢ appearance with no exposed fasteners or caulking
  • 9ASTM 283, ASTM 330, ASTM 331, AAMA 501.1 and AAMA 509
AC 3300

Click to enlarge

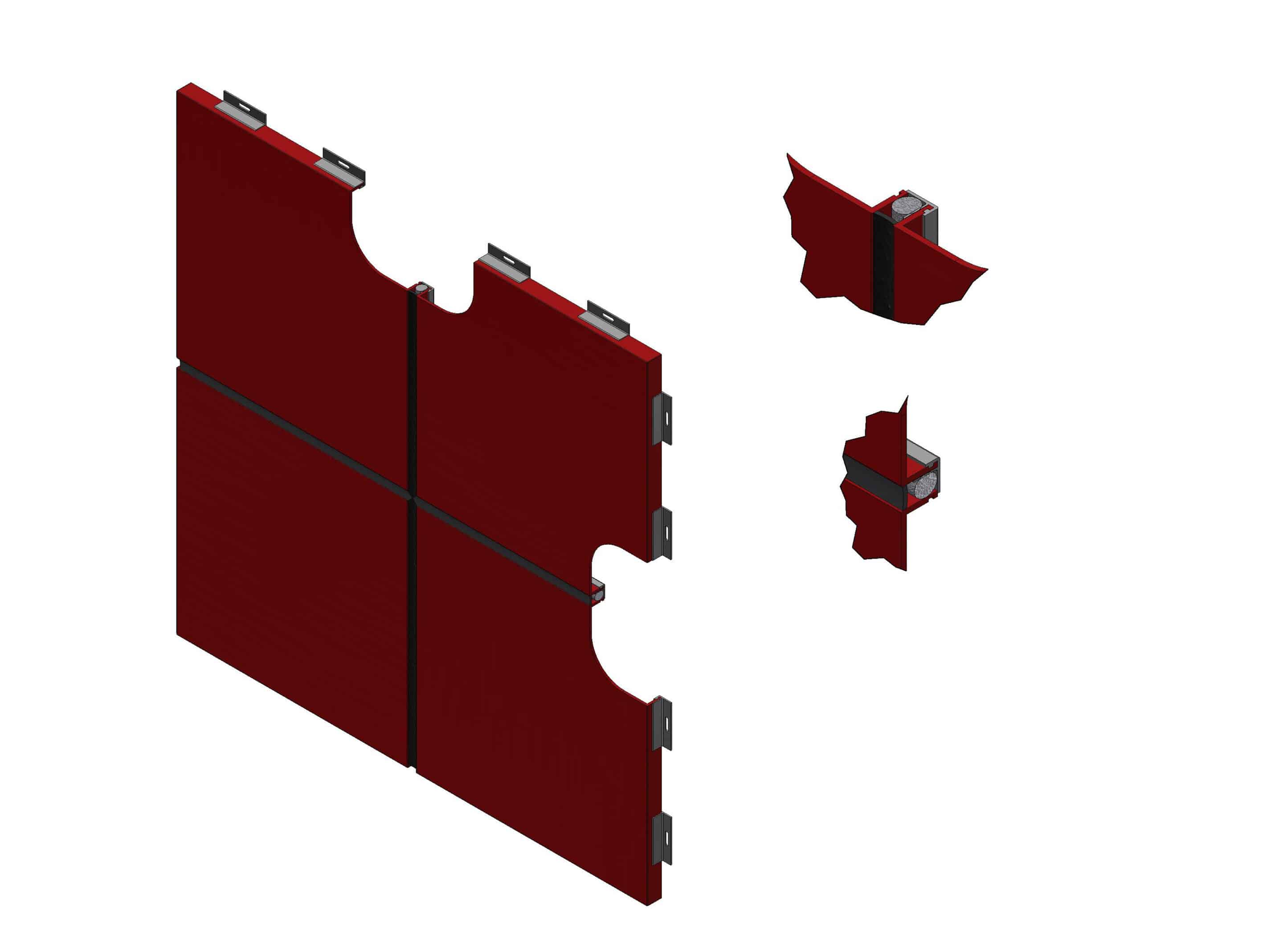

AC-3300

Product Description

The Americlad® AC-3300 Plate Panel System with Patented Sliding Clip is a barrier wall system manufactured from an aluminum plate material.

Americlad® AC-3300 system features include:

  • 9Wide variety of standard and custom colors available
  • 9Available in zinc, brushed aluminum, copper and stainless steel
  • 9Joints utilize a traditional backer rod and caulk system, which are field applied for a complete, sealed installation
  • 9ASTM 283, ASTM 330 and ASTM 331
  • 9Track routed into the panel to accommodate our exclusive, patented sliding clip. Benefits of our sliding clip include:
  • 5Clip easily slides into location for fastening back to the wall structure
  • 5Accommodates expansion and contraction by requiring only one clip be fastened to each panel, allowing the others to slide freely
  • 5Saves time and money on installation by eliminating the need to line up, clamp down, and fasten every clip on the panel; simply slide the clip down the edge of the panel to secure
